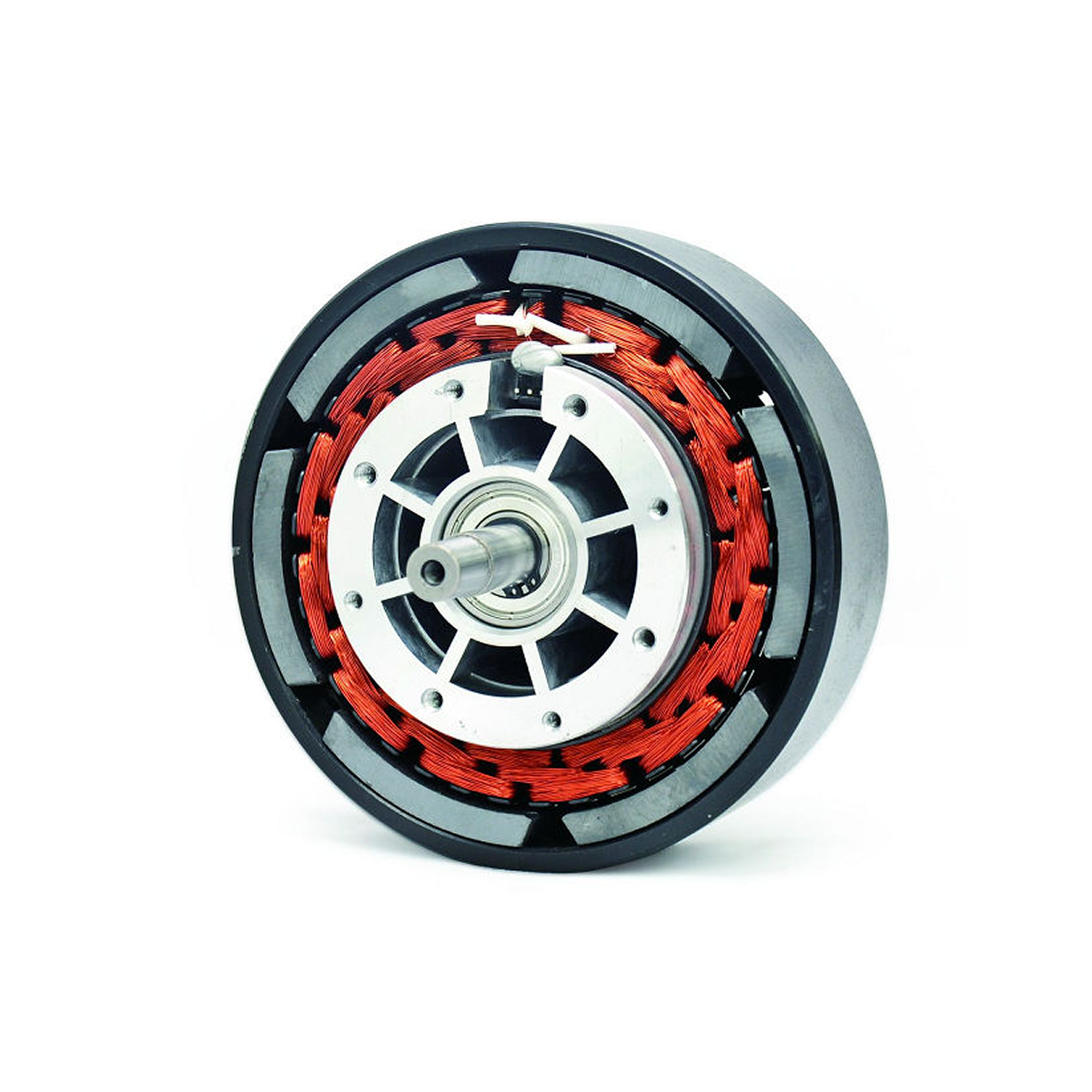

PURE GENERATOR BRAKE
型號 : FB3
系列 : FB3 Series
3-phase and Multi-phase type
Self-powered (City power is not required)
Torque depends on the input Current
High torque at low RPM
Simple structure and design
Flywheel OD: 177.3Ø, 197Ø, 215.4Ø, 220Ø, 230Ø, 242Ø, 242.7ØR, 250Ø, 270Ø
規格 Specification
| 屬性 | 參數 |
|---|---|
| Dimension | Flywheel Ø265*40W |
| Axis | Ø15*130L |
| Inertia of Flywheel | 0.055 kg-m² (4.6Kgs) |
| Torque | 250 Watt |
Performance data
| Torque & Power | |||||||||
| Current (A) RPM(brake) | 0.0 | 0.4 | 0.8 | 1.2 | 1.6 | 2.0 | 2.5 | 3.0 | |
| 600 | Torque (kg-cm) | 0.8 | 7.1 | 13.6 | 19.7 | 25.9 | 31.9 | 35.1 | 48.1 |
| Power (Watts) | 5 | 44 | 84 | 121 | 160 | 197 | 216 | 296 | |
| 800 | Torque (kg-cm) | 1.0 | 6.9 | 13.4 | 19.6 | 26.2 | 32.2 | 35.1 | 46.9 |
| Power (Watts) | 8 | 57 | 110 | 161 | 215 | 265 | 288 | 385 | |
| VI Curve of Generator | ||||||||
| 600 | I (AMP) | 0 | 0.32 | 0.43 | 0.64 | 1.02 | 1.71 | 5.5 |
| V (Voltage) | 109 | 97.6 | 95.3 | 90 | 81.9 | 68.2 | 0 | |
| 800 | I (AMP) | 0 | 0.43 | 0.57 | 0.85 | 1.35 | 2.23 | 6.86 |
| V (Voltage) | 146 | 130 | 126 | 119 | 108 | 89 | 0 | |
