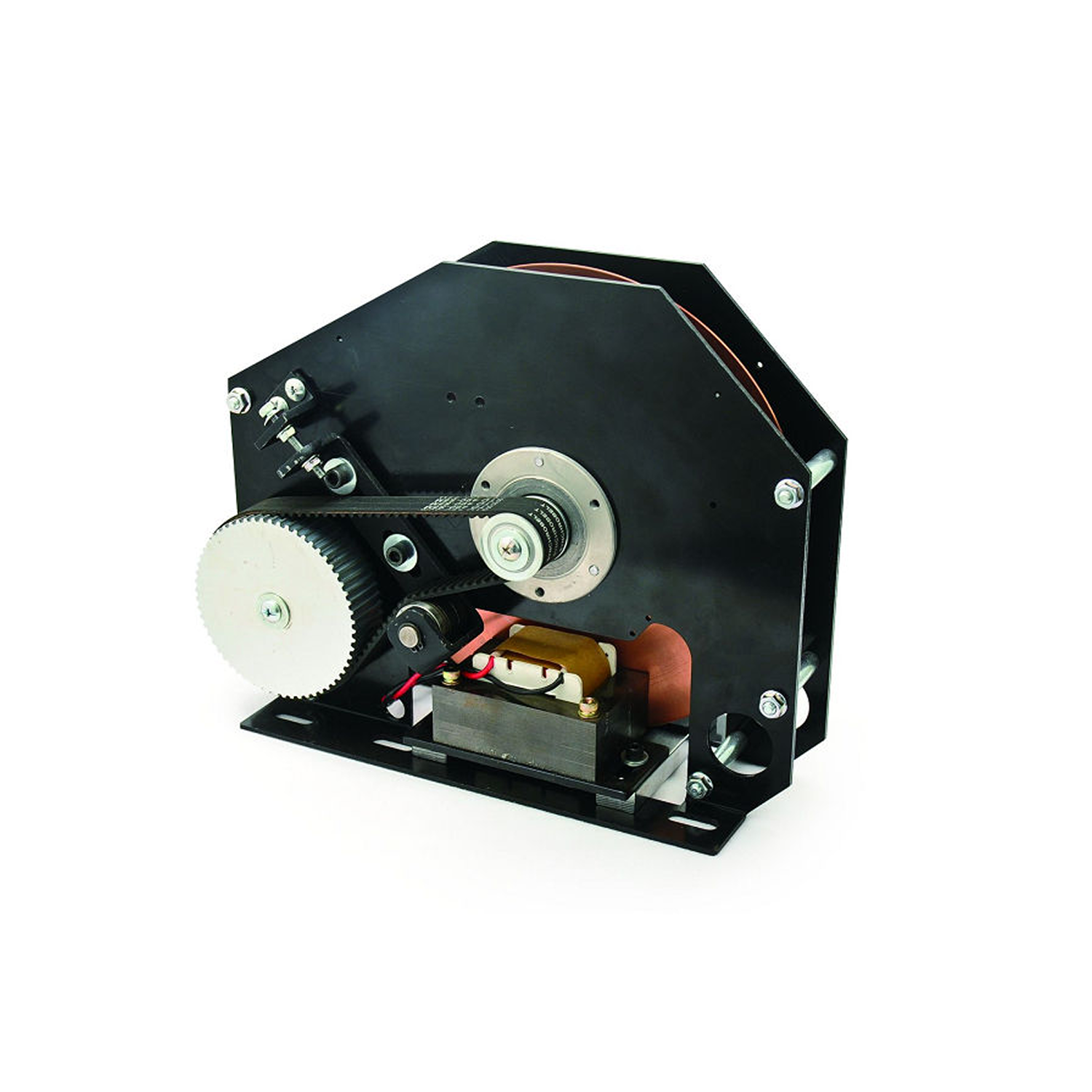

MEDICAL APPLICATION LOAD UNIT
型號 : M-EMS / FB46
系列 : FB46 Series
City power is required (plug in)
Copper plate type of Flywheel with very low inertia moment (0.0038kg-m²)
Torque:71.3 ±5% kg-cm at 60 brake rpm /0.6A
Easy start-up
規格 Specification
Performance data
| Torque & Power | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
Current (A)
RPM (brake) |
0.0 | 0.1 | 0.2 | 0.3 | 0.4 | 0.5 | 0.6 | 0.7 | 0.8 | 0.9 | 1.0 | |
| 600 | Torque (kg-cm) | 3.8 | 6.2 | 12.8 | 23.1 | 38.6 | 56.5 | 74.5 | 100.3 | 128.5 | 142.8 | 155.8 |
| Power (Watts) | 2.3 | 3.8 | 7.9 | 14.2 | 23.8 | 34.8 | 45.9 | 61.8 | 79.2 | 88.0 | 96.0 | |
