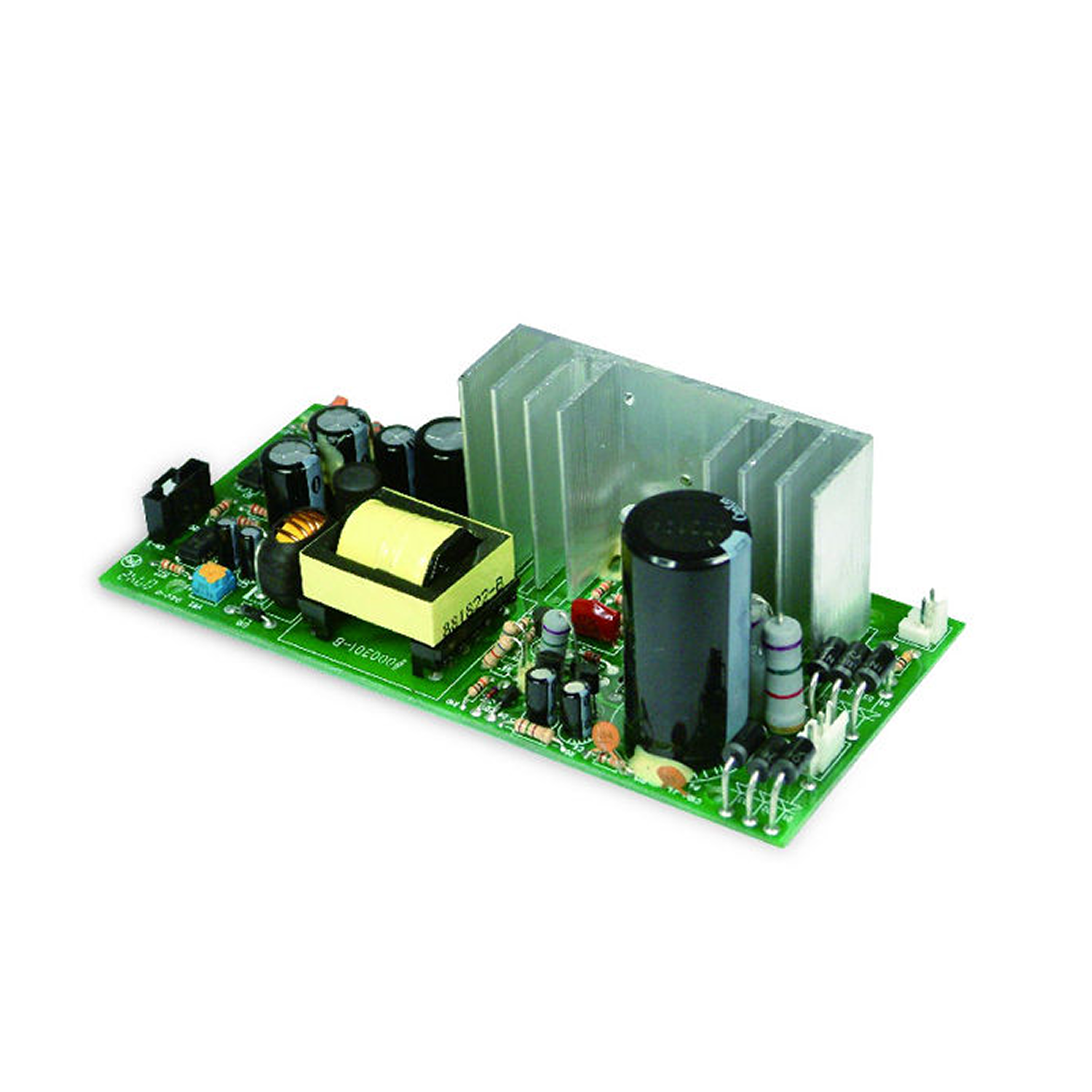

規格 Specification
| 屬性 | 參數 |
|---|---|
| Dimension | 80 x 170 (mm) |
| Application | FB6 |
| Feature | Low Cost |
| Input | 25VAC ~ 250VAC |
| DC Output | '+12V ±2.5V 0.5A (max) +5.5V ±0.5V 1.2A (max) |
| Resistance Command | 0 ~ 3.5VDC |
| Brake Current | 0 ~ 3A max |
| RPM Signal | Open collector output (Detects from generator) |
